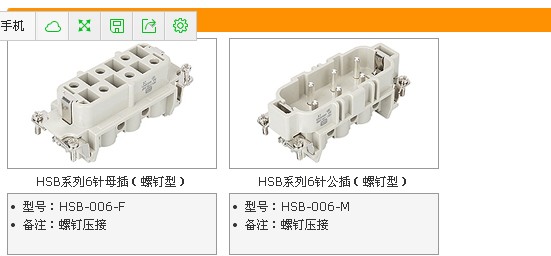

西霸士HSB-006重载连接器/重载接插件/矩形插座
产品名称:西霸士HSB-006重载连接器/重载接插件/矩形插座

产品编号:17129-572
产品型号:HSB-006
市场价格:0元/套 批发价格:0元/套
更新时间:2015.11.07
出品单位:泉州市伟达自动化设备有限公司
浏览次数:
   产品详细介绍

概述

General features

接插体

Inserts

重载接插件主要用于不同设备或功能单元之间的电气或信号连接,其为复杂控制设备的安装 和维护提供了极大的便利。

Heavy duty connector is suitable for use with alternate or direct connection, it provides lots of facilities for installatioii and maintenance in complex machinery.

重载接插件广泛应用于建筑机械、纺织机械、包装印刷机械、烟草机械、电力机车及石化电 力等需要进行电气和信号连接的应用场合。目前已成为国际通用的标准电气连接元器件。 Heavy duty connector is widely used in electric machinery manufacture control equipment and where clectric connection is required for power and signaling circuits.

重载接插体的基本结构件有I.接插体II.防护安装外壳III.连接附件 Heavy duty connector includes three elements; inserts, hood/housing and accessories.

接插体选用阻燃等级为VO的材料符合UL94V0,通常可使用的最大工作温度为125°。但 采用PPS经过特殊处理之后其可耐受外界温度可达180°C,不同的接插体其导电接线端子采 用的接线方式大致有:镙钉压接,冷压压接,弹片压接等。

The inserts are made of self-extinguishing resin UL94 VO, normally used for applications in a maximum ambience temperature of 125°C. The special versions for use with a maximum ambience temperature of 180°C are made of PPS. Different conductor connection techniques are available, screw connection, crimp connection or cage clamp connection.

安装外壳 Enclosures

客户定制

Customized design

规范,标准及认证Specifications, standard and approvals

防护安装外壳通常选用铸铝材料,外壳表面经过粉末镀层或可自熄灭的热塑材料(特殊系列) 处理,使其可以抵御撞击或机械压力。同样外壳之间的密封件可使接插件外壳的防护等级达IP65(EN60529)o

The enclosures are made in die cast aluminum alloy with a coating of epoxy-polyester powder or in self-extinguishing thermo plastic (Special series). There are resistant to impacts and strong mechanical stress. Sealing is assured by special gaskets that protect the contact groups inside the enclosures against dust and aggressive agents. In general, the coupled enclosures with the appropriate connections guarantee an IP65 (EN 60529) degree of protection.

附件包含各种的电缆接头及不同的外壳形式。多样的附件为不同的安装需求提供了多种不 同的解决方安案。

Accessories include some different cable gland and different hoods/housings. The special enclosures provide the solution to most diverse installation needs,

针对客户的具体使用需求,我司也可提供特殊的开发及定制,具体问题可咨询。 For customer's special requirement, we can provide customized design, please contact us.

I.           产品制造规范/Specifications

制造规范/Specifications

VDE 0110 爬电距离及电气间隙/Concerning clearance and creepage distances VDE 0627 插头插座/Connectors and plug devices

II.         产品认证/Approvals

UL 3C CE SA VDE ROHS



规范



Specifications

DIN VDE 0627



DIN VDE 0110

接插件针数



Number of contacts

6,12(2 x6)+PE

接插体



工作电流



Working current

35 A max.

(见电流负载图



see current carrying capacity)



工作电压



Working voltage

690 V

测试电压



Test voltage Urms

6 kv

隔离电阻



Insulation resistance

>10IOQ

材料



Material

polyamide

工作温度范围



Temperature range

-40°C...+100°C/125°C

阻燃等级(据UL94)



Flammability acc.to UL94

VO

UL/CSA工作电压



Working voltage acc.to UL/CSA

600 V

可拔插次数



Mechanical working life



-mating cycles

>500

接插针/CcmMch



材料

Material

copper alloy

表面处理

镀银

Surface

hard silver-plated

接触电阻



Contact resistance

< 1 mQ

接线形式

螺钉压接

Terminal

screw terminal

-mm2

6 mm2

-AWG

10

拧紧力矩/测试力矩



-Tightening/test torque

1.2 Nm

金属上壳/底座Af/%

材料

铸铝合金

Material

die cast aluminium

表面处理

高温粉末镀层

Surface

powder-coated



灰色UAL 7037

锁定装置

不锈钢或铁镀锌

Locking element

stainless steel,



steel-zinc plated

工作温度范围



Temperature range

-40°C...+125°C

防护等级



Degree of protection



acc.to DIN40050

IP 65
